Connect front audio connector
Posted: Wed Dec 21, 2011 1:55 pm
by Nandika
my friend has a computer with Foxconn 45GM mother board.
we cant connect front audio cable,because we dont know system for connect it.
help me.
i were searched internet.
plese give me a named picture of mother board front audio connector or link.
thankx
[ Post made via Mobile Device ]
Re: Connect front audio connector
Posted: Wed Dec 21, 2011 4:05 pm
by Nipuna

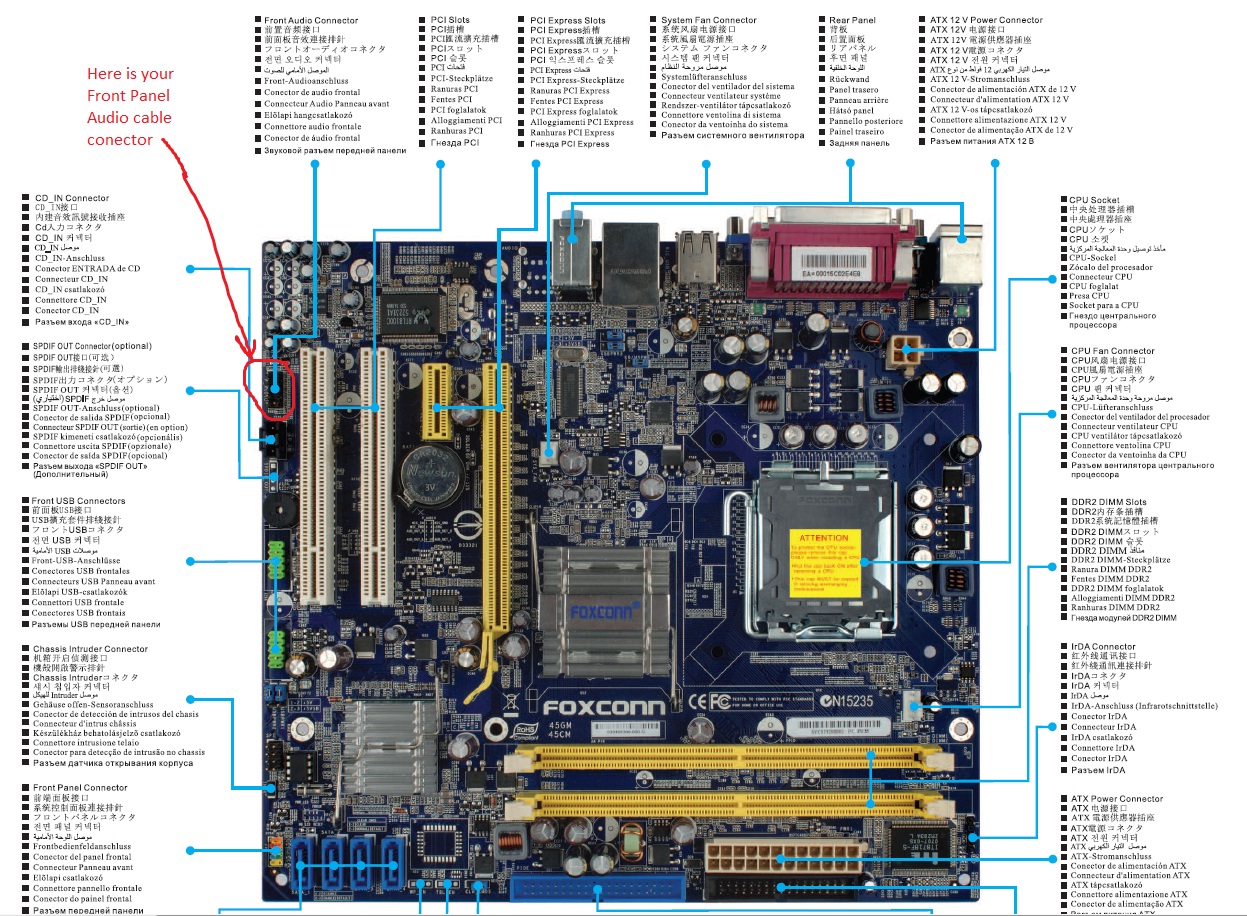

I added a picture there you can see where to connect it.
- audio.jpg (521.35 KiB) Viewed 9833 times
There are detailed info in the Motherboard Manual
Here is the link to download it
http://www.foxconnsupport.com/download. ... d%20Manual
I didn't upload it here because it's 9MB.
Re: Connect front audio connector
Posted: Wed Dec 21, 2011 7:01 pm
by Nandika
Friend,
i know location of front audio connector.but,i dont know pin oder of connector.wirs of cable have a name for eatch.as SpkR,SpkL,Gnd,....ect.i can understand this short name.
i want to know pin of connector for eatch wire witch start in front panel of casing.
Thank...
[ Post made via Mobile Device ]
Re: Connect front audio connector
Posted: Wed Dec 21, 2011 7:21 pm
by Nandika
Dear Nipuna,
your picture of mother board is Foxconn 45CM-S.not 45GM.
45GM has a flopy connector beside front audio connector.
Thank u Nipuna.if u can,give me pin oder.i think,45GM audio connector is same to 45CM-S audio connector.perhaps all audio connector.
Thank you
[ Post made via Mobile Device ]
Re: Connect front audio connector
Posted: Wed Dec 21, 2011 7:50 pm
by Nipuna
Gnd means Ground
SpkR means Speaker Right
SpkL means Speaker Left
I will tell you how to connect them if you can send me images of those connector and wires
To let you know I also have a Foxconn Motherboard.
Thanks
Re: Connect front audio connector
Posted: Wed Dec 21, 2011 8:17 pm
by Saman

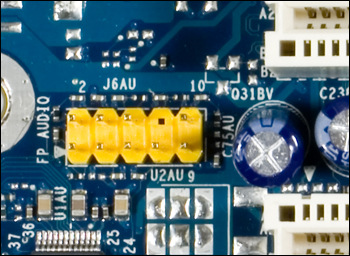

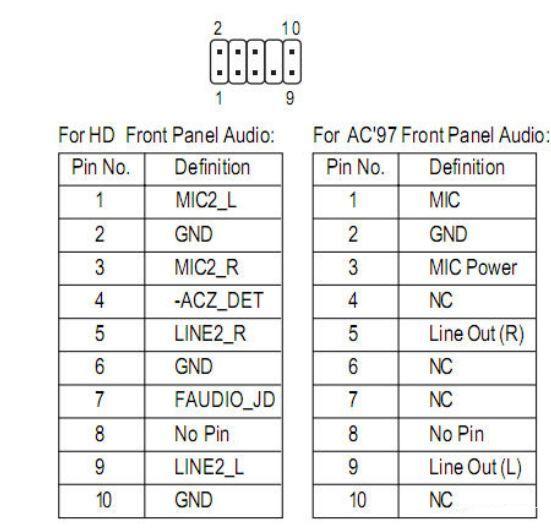

This is the standard pin order of front audio connector.
- mb.jpg (147.1 KiB) Viewed 9822 times
- front_audio_pins.jpg (44.79 KiB) Viewed 9823 times
Re: Connect front audio connector
Posted: Wed Dec 21, 2011 10:31 pm
by Nandika
Thank u Saman.you could undestand my problem.your image is compleat answare for my problem.
and,
Is this diagram the standerd for any mother board?
Thanx
[ Post made via Mobile Device ]
Re: Connect front audio connector
Posted: Wed Dec 21, 2011 10:50 pm
by Nandika
Nipuna wrote:Gnd means Ground
SpkR means Speaker Right
SpkL means Speaker Left
I will tell you how to connect them if you can send me images of those connector and wires
To let you know I also have a Foxconn Motherboard.
Thanks
i also have Foxconn 45CM-S mother board.
i think you couldnt understand my problem correctly.because my question is unclear using English.because,
i will send images to you to tomorrow.
Thank
[ Post made via Mobile Device ]
Re: Connect front audio connector
Posted: Wed Dec 21, 2011 11:21 pm
by Nipuna
It's not a problem
If you could correct your problem then I am happy
Re: Connect front audio connector
Posted: Thu Dec 22, 2011 9:35 am
by Saman
Is this diagram the standerd for any mother board?
Yes it is. There are two standards and both are explained in the diagram (HD and AC97).
