I want to give my sound out put to my set up.

That SONY set up has mono sound input...my computer has stereo out put...

I wanna join them...give me a advice please

this is my computer out port>>>>>

this kind of line in I have in my set up>>>

I wan't long cable..Thats why I am trying to make It by my own

Use mono jack at the two ends of the wire.
don't use loo long wires because when wires are too long there is no sound.

Computer has this jack to out put >>>>>

set up has this knd of jack to in put>>>>

I am asking how can I join this...may be a little question..But I don't know anything about electroninc

G-sparkZ wrote:Computer has this jack to out put >>>>>

set up has this knd of jack to in put>>>>

I am asking how can I join this...may be a little question..But I don't know anything about electroninc

Hi friend,

u have wrong with stereo and mono.

mono means single audio line. but both of ur radio and pc have stereo jacks.

i think ur sound card has 4audio oupputs or u think both of line in and out are outs.

try with ur last pic's cable by connecting to one by one sound card's ports.

Regards.

[ Post made via Mobile Device ]

First I moved topic to this area. There nothing related to mechanical engineering on this topic.

Secondly, our members have given lots of answers so I don't think I'll have to comment on this. However I'll put up the cable description that might help you.

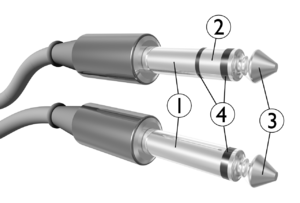

TRS Jack

1. Sleeve: usually ground
2. Ring: Right-hand channel for stereo signals, negative phase for balanced mono signals, power supply for power-requiring mono signal sources
3. Tip: Left-hand channel for stereo signals, positive phase for balanced mono signals, signal line for unbalanced mono signals
4. Insulating rings

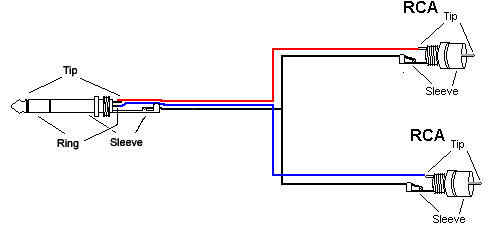

RCA Jack Cable Connection
Make sure you use shielded copper cable to reduce attenuation.

hi G-sparkZ,

This is the final answer for ur problem.

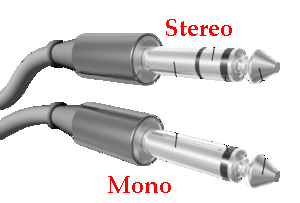

Normally in elecronic filed we name jacks as below. U have only to connect ur cable to ur soundcard.
And this picture has 2 stereo jacks. I think it is a cable of a headphone witch came with a mic.


Think this will helpfull.

Thanks brothers.

I got lot from your posts.I had wrong idea about STEREO & MONO.Now I got that idea.

Neo wrote:
Cable Connection

This is the question I am asking from you.Because of my English knowledge you couldn't get my problem.
I was asking how can I connect those cables.Now I got it.I got a advantage from my mistake.I learn about the deferance between mono & stereo(I got my wrong idea corrected from that mistake.That was a blessing to me.)

Any way I am quit happy about Expertcore.Because I have less knowledge about these kind of things.But you pay good attention to my stupid questions also...

@ NEO.Sorry about the topic posting place....

@ RKSK that your post was realy help full

bro,
helping through sharing infomation is our vision. we have to help others.

i'm not a expert but know something, too about english.

Thank you.

[ Post made via Mobile Device ]

thanks for all.....
