how to build a drawing machine

[PraveenAlexis]

A picture is worth a thousand words !!!

Can you update with some pictures.

its with shenal now, il tell him to upload a picture

[Shenal]

Here are some pictures of drawing machine.
Sorry for late updates

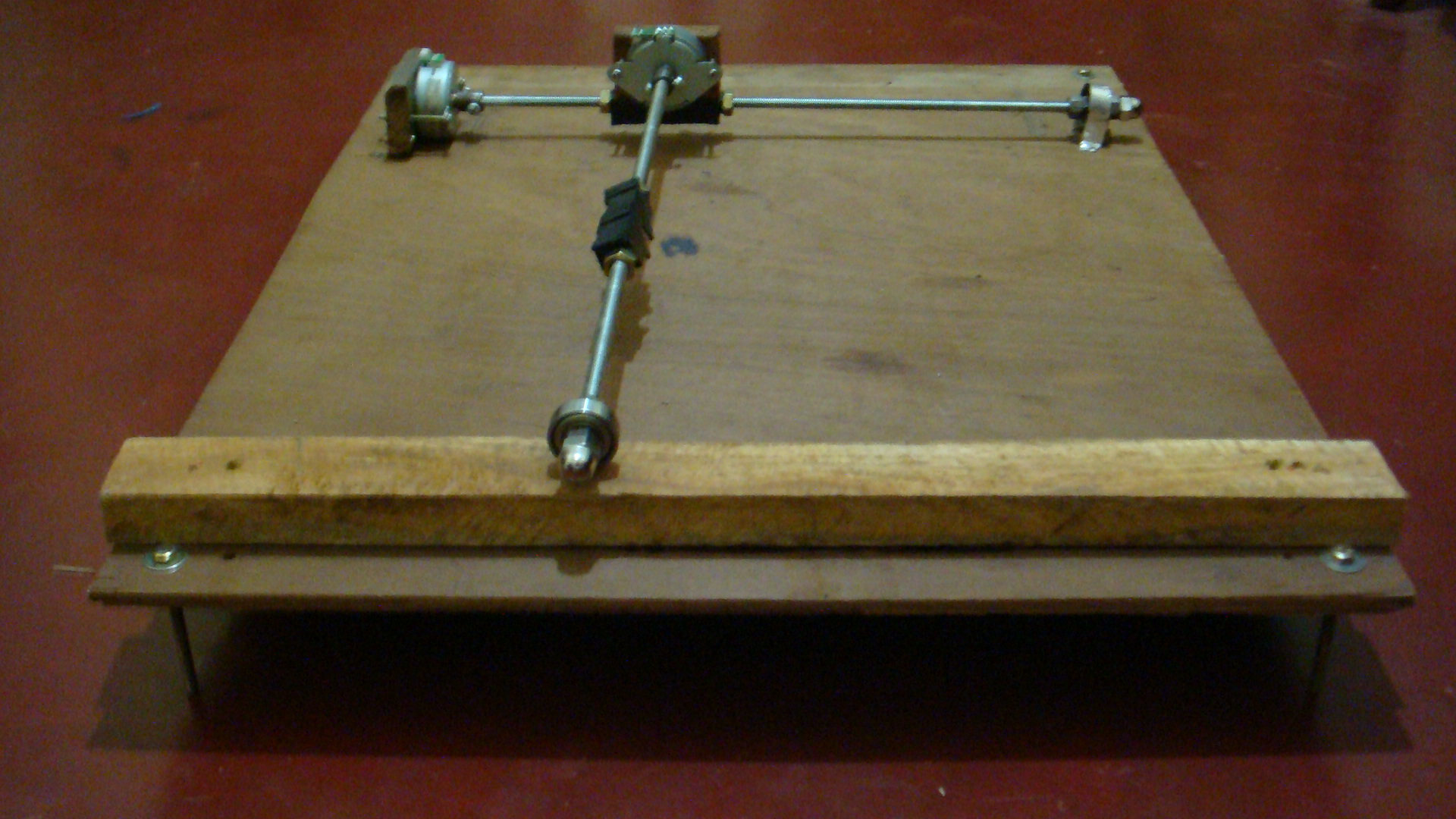

Drawing Machine


Drawing Machine

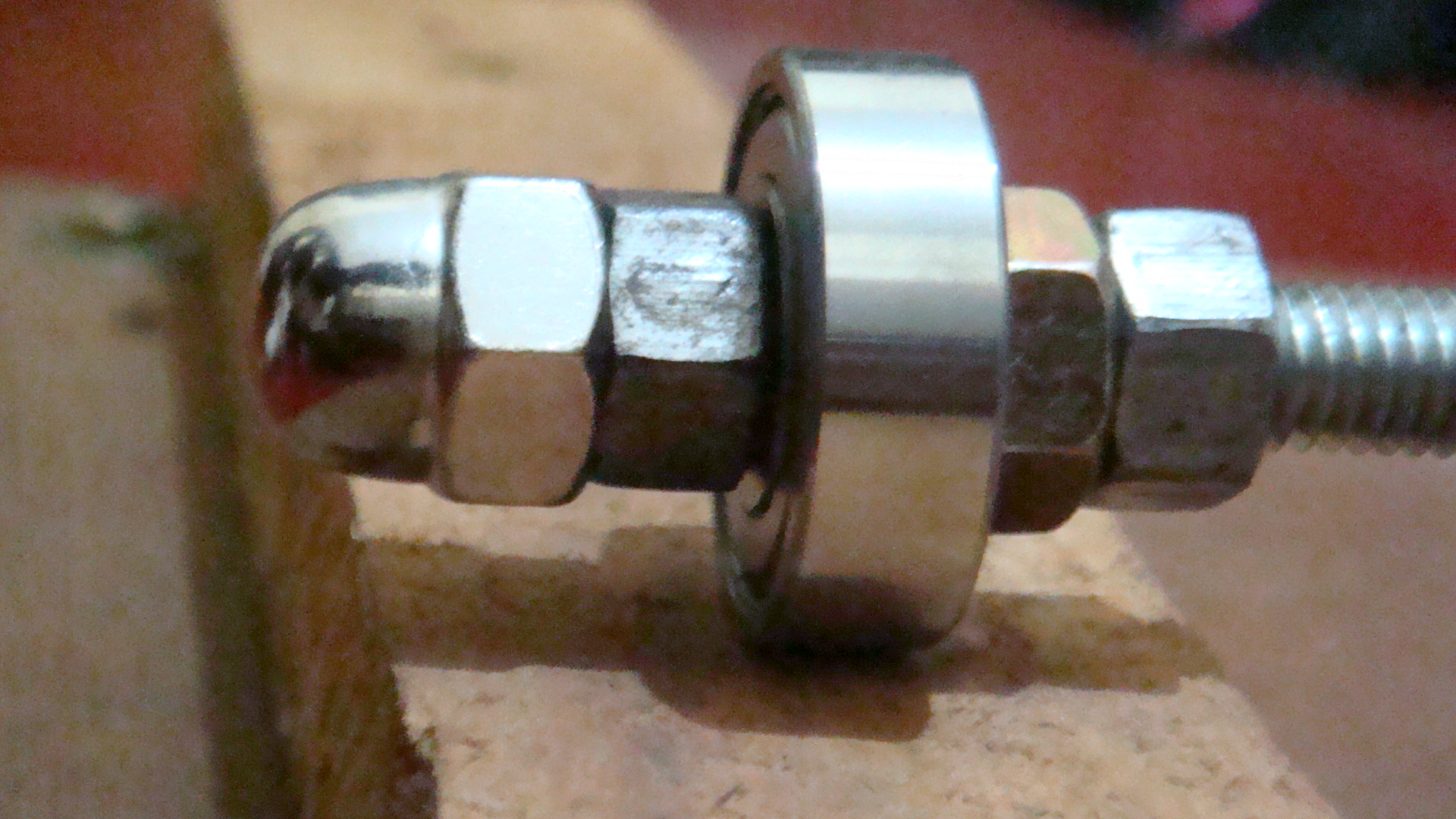

End of Y axis

End of Y axis.JPG (804.74 KiB) Viewed 23717 times

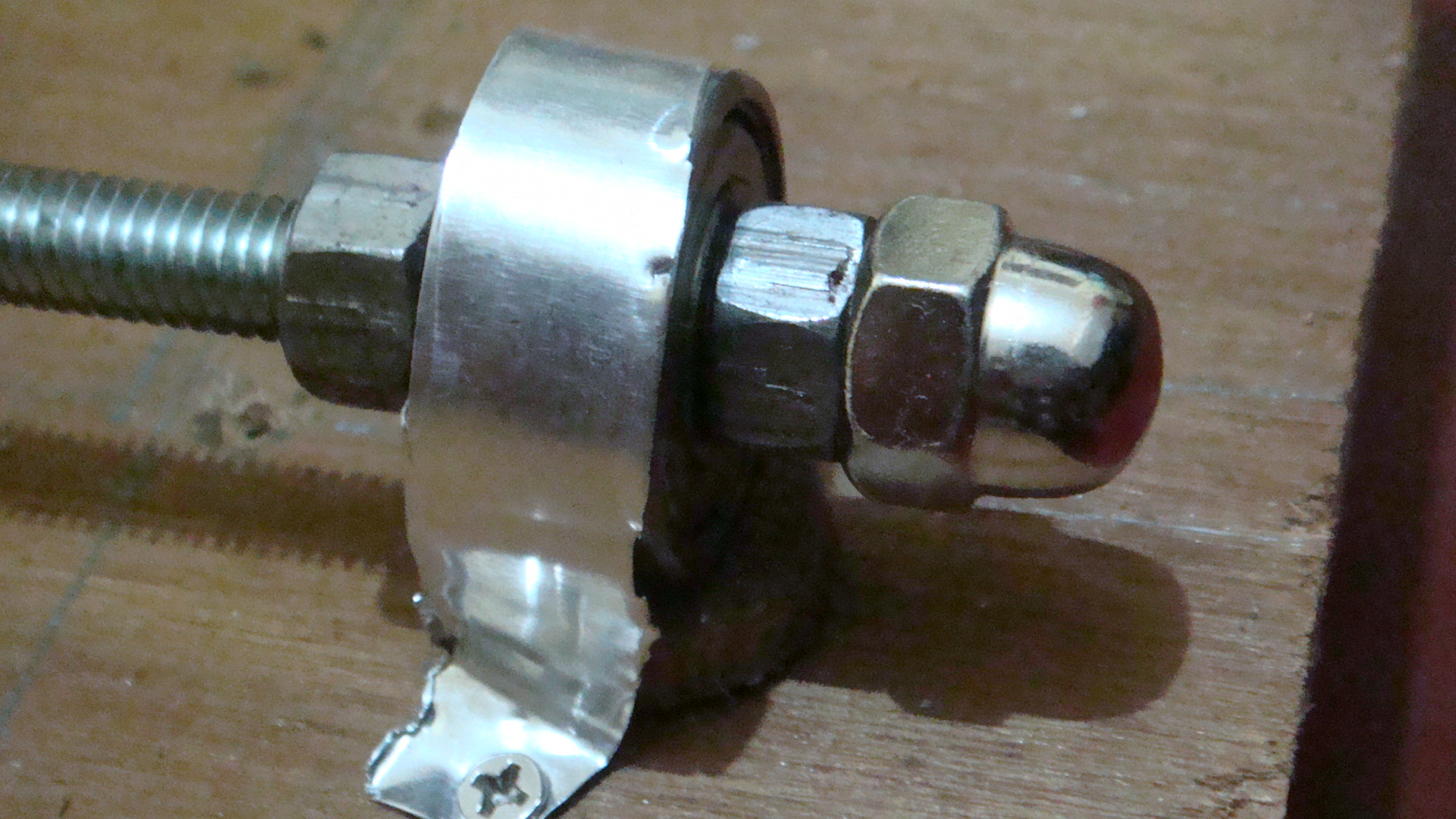

End of X axis

End of X axis.JPG (652.27 KiB) Viewed 23717 times

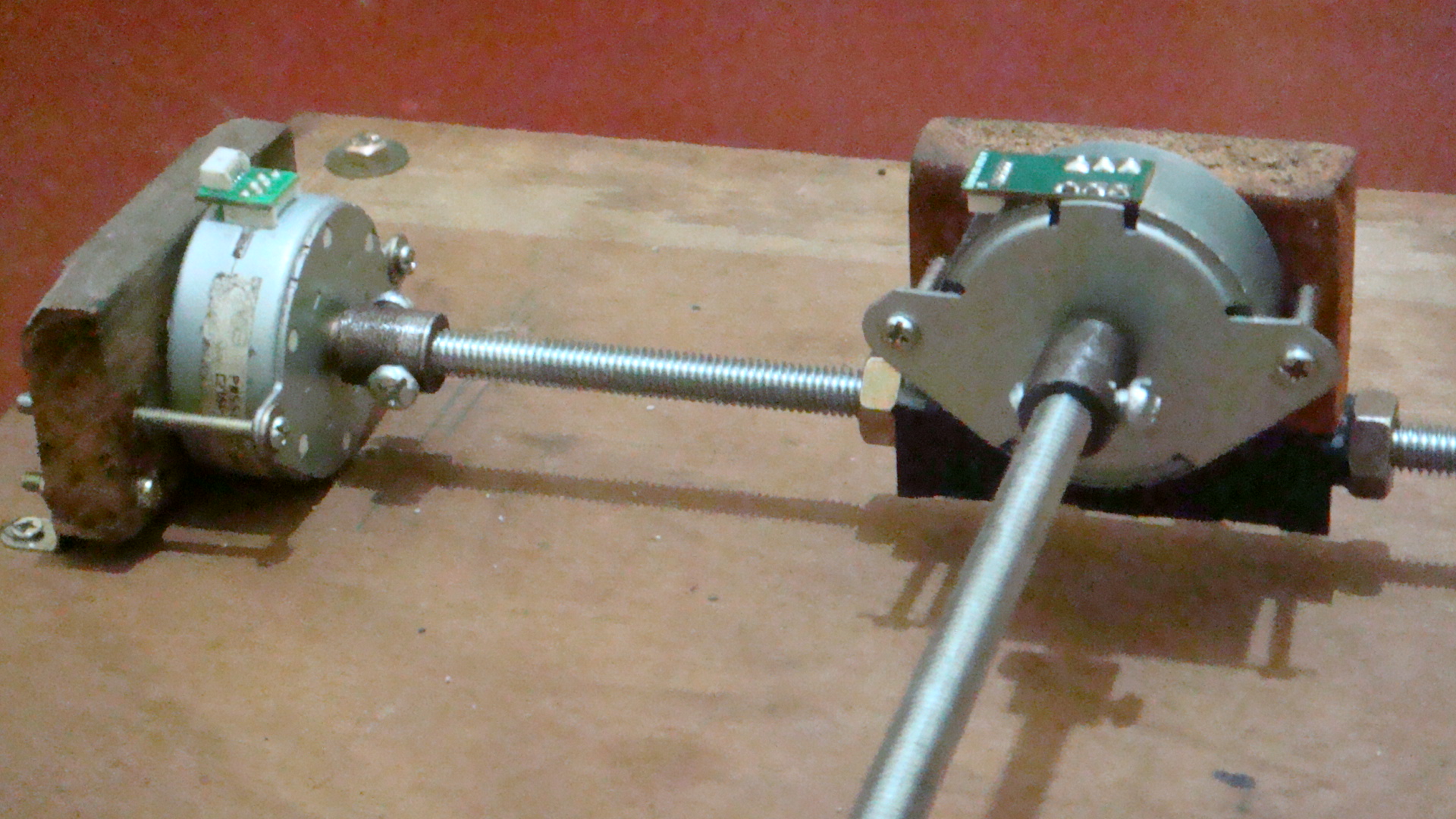

X and Y axis

X and Y axis.JPG (796.33 KiB) Viewed 23717 times

[Neo]

Very nice. Praveen has done a good job. I would like to give a little idea. I think it would be better if you could use another stepper motor instead of the free wheel. It could otherwise be inaccurate when the pen is loaded with some friction. Just an idea. I know time has already become a problem.

[Shenal]

How about line bearings without an other stepper

[Neo]

As long as it can handle the friction of the pen, technically a bearing is okay. However in practical terms, you will have to do some additional work to get it to work. Since this topic is very long, please start a new topic for other questions.

[Rksk]

So, what happen to this project? is there any updates?
Now it's octomber' end.

[ Post made via Mobile Device ]

[Neo]

I have also requested the same from Praveen but didn't get any reply so far

[Shenal]

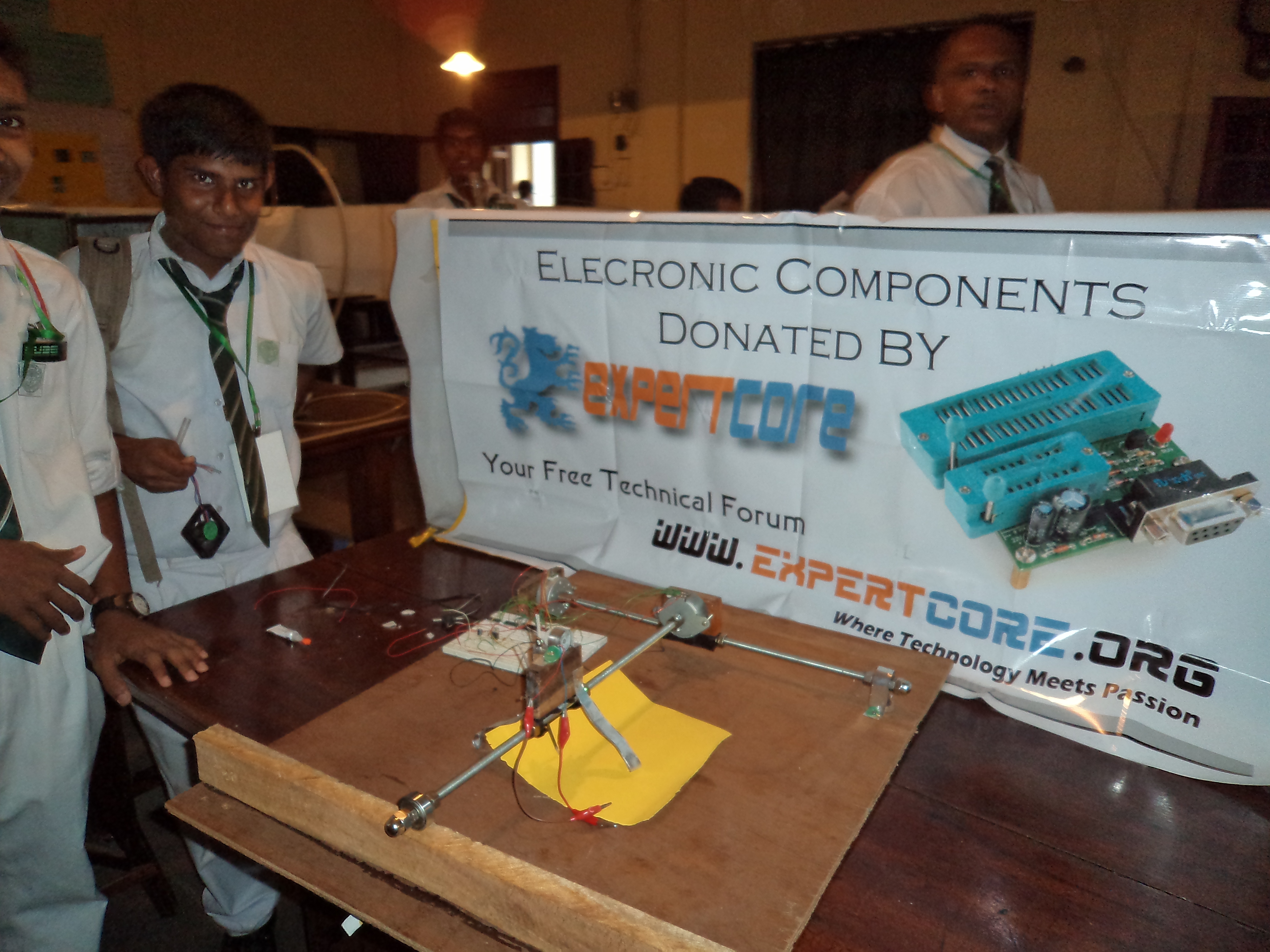

Our Exhibition

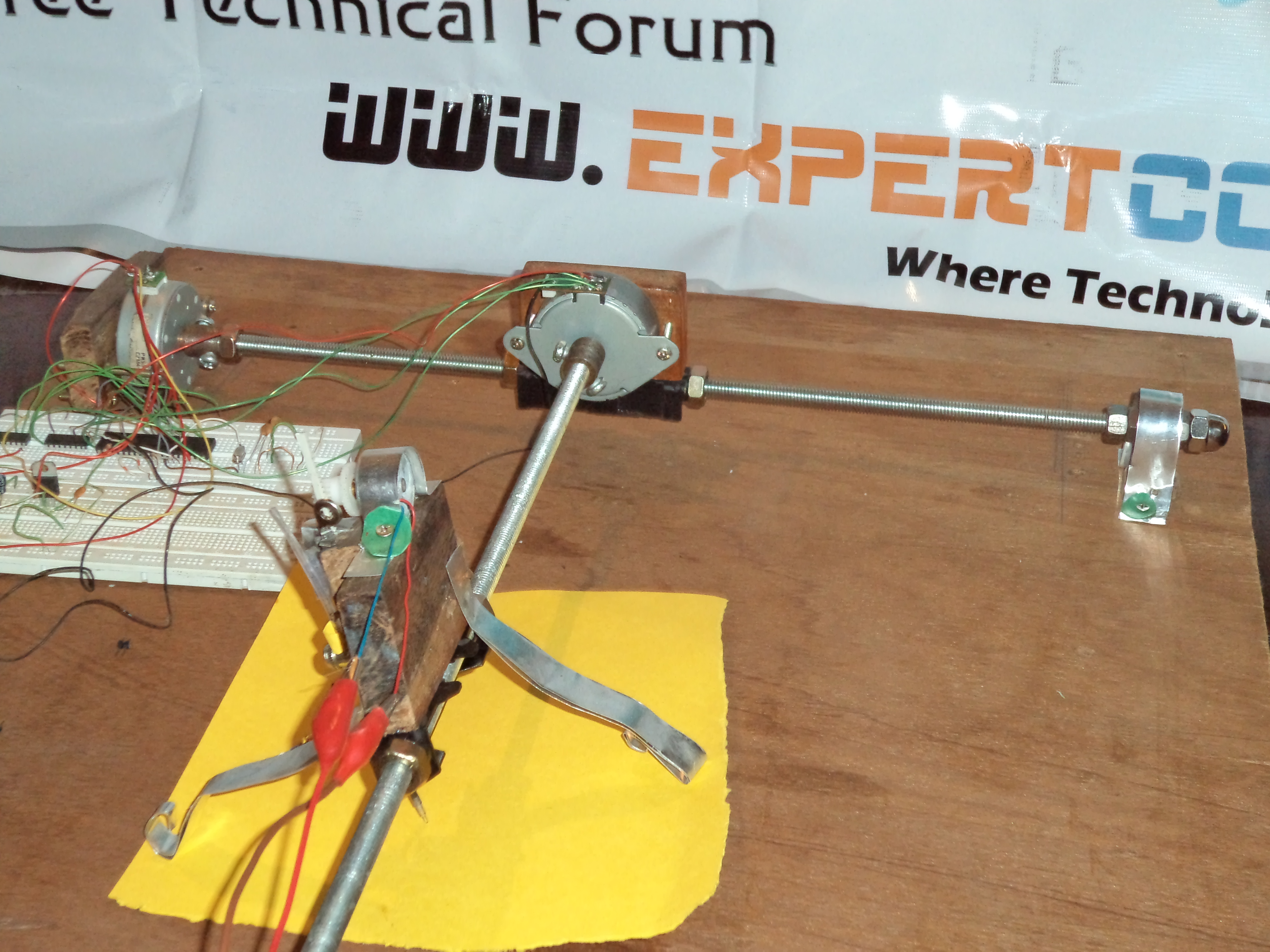

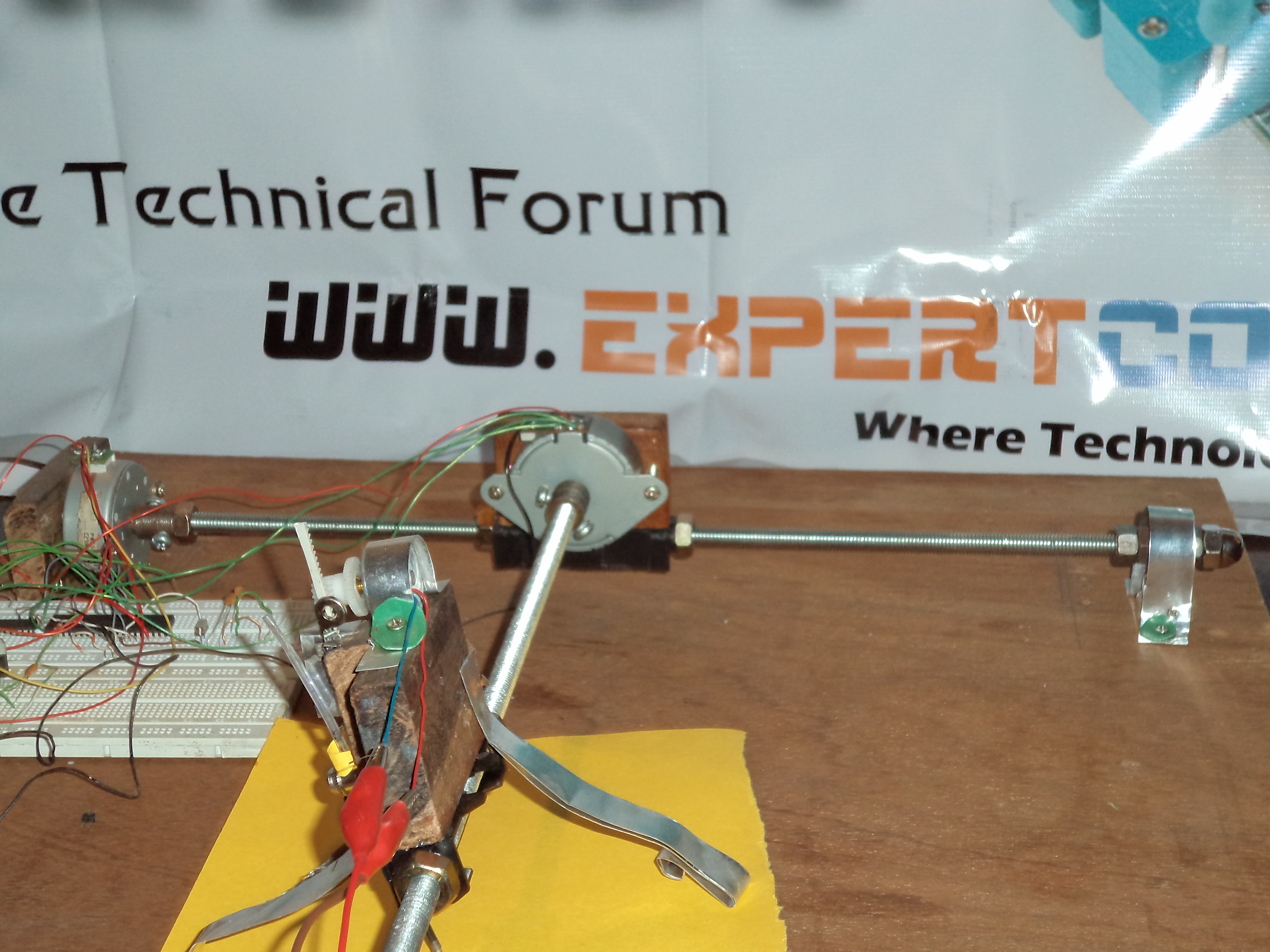

Images of the Drawing Machine(Without USART)

[Neo]

Excellent... this is very nice!!!

[sthn]

can someone tell me how to write the firmware to micro-controller to drive the stepper motors.Iam going to use mach3
