Rapid Prototyping (RP) can be defined as a group of techniques used to quickly fabricate a scale model of a part or assembly using three-dimensional computer aided design (CAD) data. What is commonly considered to be the first RP technique, Stereolithography, was developed by 3D Systems of Valencia, CA, USA. The company was founded in 1986, and since then, a number of different RP techniques have become available.
Rapid Prototyping has also been referred to as solid free-form manufacturing, computer automated manufacturing, and layered manufacturing. RP has obvious use as a vehicle for visualization. In addition, RP models can be used for testing, such as when an airfoil shape is put into a wind tunnel. RP models can be used to create male models for tooling, such as silicone rubber molds and investment casts. In some cases, the RP part can be the final part, but typically the RP material is not strong or accurate enough. When the RP material is suitable, highly convoluted shapes (including parts nested within parts) can be produced because of the nature of RP.
There is a multitude of experimental RP methodologies either in development or used by small groups of individuals. This section will focus on RP techniques that are currently commercially available, including Stereolithography (SLA), Selective Laser Sintering (SLS®), Laminated Object Manufacturing (LOM™), Fused Deposition Modeling (FDM), Solid Ground Curing (SGC), and Ink Jet printing techniques.
Selective Laser Sintering
- sinter.JPG (29.91 KiB) Viewed 2891 times

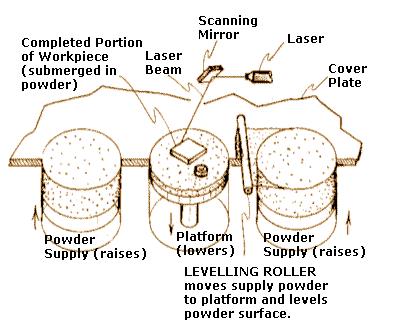

As the figure below shows, an SLS® machine consists of two powder magazines on either side of the work area. The leveling roller moves powder over from one magazine, crossing over the work area to the other magazine. The laser then traces out the layer. The work platform moves down by the thickness of one layer and the roller then moves in the opposite direction. The process repeats until the part is complete.
SLA vs. SLS: A Summarized Comparison
Material Properties: The SLA (stereolithography) process is limited to photosensitive resins which are typically brittle. The SLS® process can utilize polymer powders that, when sintered, approximate thermoplastics quite well.
Surface Finish: The surface of an SLS® part is powdery, like the base material whose particles are fused together without complete melting. The smoother surface of an SLA part typically wins over SLS® when an appearance model is desired. In addition, if the temperature of uncured SLS® powder gets too high, excess fused material can collect on the part surface. This can be difficult to control since there are so many variables in the SLS® process. In general, SLA is a better process where fine, accurate detail is required. However, a varnish-like coating can be applied to SLS® parts to seal and strengthen them.
Dimensional Accuracy: SLA is more accurate immediately after completion of the model, but SLS® is less prone to residual stresses that are caused by long-term curing and environmental stresses. Both SLS® and SLA suffer from inaccuracy in the z-direction (neither has a milling step), but SLS® is less predictable because of the variety of materials and process parameters. The temperature dependence of the SLS® process can sometimes result in excess material fusing to the surface of the model, and the thicker layers and variation of the process can result in more z inaccuracy. SLA parts suffer from the "trapped volume" problem in which cups in the structure that hold fluid cause inaccuracies. SLS® parts do not have this problem.
Support Structures: SLA parts typically need support structures during the build. SLS® parts, because of the supporting powder, sometimes do not need any support, but this depends upon part configuration. Marks left after removal of support structures for parts cause dimensional inaccuracies and cosmetic blemishes.
Machining Properties: In general, SLA materials are brittle and difficult to machine. SLS® thermoplastic-like materials are easily machined.
Size: SLS® and SLA parts can be made the same size, but if sectioning of a part is required, SLS® parts are easier to bond.
Investment Casting: The investment casting industry has been conservative about moving to RP male models, so SLS® models made from traditional waxes, etc. are preferred. 3D Systems has a process (dubbed "QuickCast™") which allows SLA models to be more suitable for investment casting. Since SLA resins do not melt but burn to form ash, QuickCast™ modifies the build process so that the interior of the model is hollow with a supporting latticework. When the ceramic is fired, the QuickCast™ model collapses and any ash is minimal because of the small total quantity of material.
Laminated Object Manufacturing
- aa.JPG (41.19 KiB) Viewed 2891 times

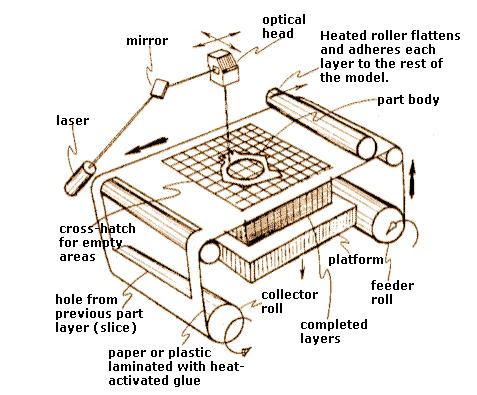

Layer fabrication starts with sheet being adhered to substrate with the heated roller.
The laser then traces out the outline of the layer.
Non-part areas are cross-hatched to facilitate removal of waste material.
Once the laser cutting is complete, the platform moves down and out of the way so that fresh sheet material can be rolled into position.
Once new material is in position, the platform moves back up to one layer below its previous position.
The process can now be repeated.
The excess material supports overhangs and other weak areas of the part during fabrication. The cross-hatching facilitates removal of the excess material. Once completed, the part has a wood-like texture composed of the paper layers. Moisture can be absorbed by the paper, which tends to expand and compromise the dimensional stability. Therefore, most models are sealed with a paint or lacquer to block moisture ingress.
The LOM™ developer continues to improve the process with sheets of stronger materials such as plastic and metal. Now available are sheets of powder metal (bound with adhesive) that can produce a "green" part. The part is then heat treated to sinter the material to its final state.
Fused Deposition Modeling
- fused.JPG (14.33 KiB) Viewed 2891 times
• Standard engineering thermoplastics, such as ABS, can be used to produce structurally functional models.
• Two build materials can be used, and latticework interiors are an option.
• Parts up to 600 × 600 × 500 mm (24 × 24 × 20 inches) can be produced.
• Filament of heated thermoplastic polymer is squeezed out like toothpaste from a tube.
• Thermoplastic is cooled rapidly since the platform is maintained at a lower temperature.
• Milling step not included and layer deposition is sometimes non-uniform so "plane" can become skewed.
• Not as prevalent as SLA and SLS®, but gaining ground because of the desirable material properties.

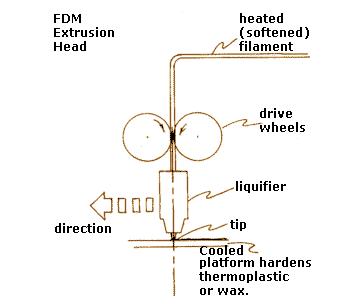

Stratasys of Eden Prairie, MN makes Fused Deposition Modeling (FDM) machines. The FDM process was developed by Scott Crump in 1988. The fundamental process involves heating a filament of thermoplastic polymer and squeezing it out like toothpaste from a tube to form the RP layers. The machines range from fast concept modelers to slower, high-precision machines. The materials include polyester, ABS, elastomers, and investment casting wax
Solid Ground Curing
- soil.JPG (37.18 KiB) Viewed 2891 times
• Large parts, 500 × 500 × 350 mm (20 × 20 × 14 in), can be fabricated quickly.
• High speed allows production-like fabrication of many parts or large parts.
• Masks are created w/ laser printing-like process, then full layer exposed at once.
• No post-cure required.
• Milling step ensures flatness for subsequent layer
• Wax supports model: no extra supports needed.
• Creates a lot of waste.
• Not as prevalent as SLA and SLS, but gaining ground because of the high throughput and large parts.

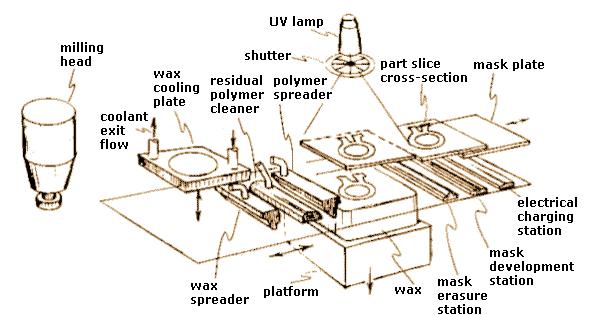

Solid Ground Curing, also known as the Solider Process, is a process that was invented and developed by Cubital Inc. of Israel. The overall process is illustrated in the figure above and the steps are illustrated below. The SGC process uses photosensitive resin hardened in layers as with the Stereolithography (SLA) process. However, in contrast to SLA, the SGC process is considered a high-throughput production process. The high throughput is achieved by hardening each layer of photosensitive resin at once. Many parts can be created at once because of the large work space and the fact that a milling step maintains vertical accuracy. The multi-part capability also allows quite large single parts (e.g. 500 × 500 × 350 mm / 20 × 20 × 14 in) to be fabricated. Wax replaces liquid resin in non-part areas with each layer so that model support is ensured
Ink Jet Printing Techniques
Ink jet printing comes from the printer and plotter industry where the technique involves shooting tiny droplets of ink on paper to produce graphic images. RP ink jet techniques utilize ink jet technology to shoot droplets of liquid-to-solid compound and form a layer of an RP model. Common ink jet printing techniques, such as Sanders ModelMaker™, Multi-Jet Modeling™, Z402 Ink Jet System™, and Three-Dimensional Printing, are presented in this section. Although none of the these techniques have become as established as the Stereolithography (SLA) or Selective Laser Sintering (SLS®) systems, several show promise.
Sanders ModelMaker
- mask.JPG (21.54 KiB) Viewed 2891 times
• Accuracy is partly enabled by a milling step after each layer deposition.
• Plotting system is a liquid-to-solid inkjet which dispenses both thermoplastic and wax materials.
• Compared to SLS® and SLA, not as established.
The Sander ModelMaker™ product is produced and distributed by Sanders Prototype, Inc. of Wilton, NH, USA. Smooth cosmetic surface quality can be achieved by pre-tracing the perimeter of a layer prior to filling in the interior. The supporting wax material is deposited at the same time as the thermoplastic.
Both the thermoplastic material (Protobuild™) and the wax support material (Protosupport™) are proprietary materials of Sanders
Multi-Jet Modeling
- multi_jet.JPG (23.45 KiB) Viewed 2891 times
Office-friendly: non-toxic materials, small footprint, low odor.
Simple operation: operates as a network printer in an office environment.
Models are primarily for appearance use.
Compared to SLS® and SLA, not as established.

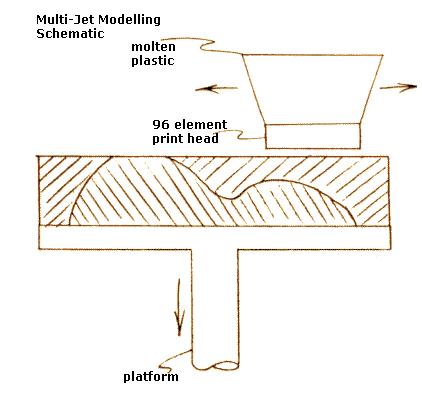

Another product of 3D Systems from the makers of the SLA system, Multi-Jet Modeling™ uses a 96-element print head to deposit molten plastic for layering. The system is fast compared to most other RP techniques, and produces good appearance models with minimal operator effort. The main market that this system is targeted at is the engineering office where the system must be non-toxic, quiet, small, and with minimal odor
Z402 Ink Jet System
• Fast: one to two vertical inches per hour, depending on layer density.
• Office-friendly: non-toxic materials, small footprint, low odor.
• Simple operation.
• Compared to SLA and SLS®, not as established.
The Z402™ is one of the fastest 3D printers known to Rapid Prototyping. The ability to produce quick models means greater productivity for the lab and quick prototypes for customers. Since manufacturing parts is easy, almost anyone in the lab can produce a quality part without extensive Rapid Prototyping experience.
Three-Dimensional Printing
- 3D_printing.JPG (19.42 KiB) Viewed 2891 times
• Without milling step, work plane can become successively skewed.
• Not as established as SLA and SLS®.

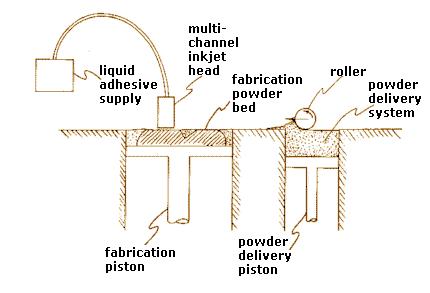

Three-Dimensional Printing, developed by MIT and Soligen, Inc., is illustrated below. It is another technique based on the inkjet printing process. Binder is printed on a powder layer to selectively bind powder together for each layer.
