LED array calculator for driving multiple LEDs

Post by **Neo** » Thu Aug 18, 2011 3:42 am

I found a nice site that you can use to calculate resistor values automatically in LED arrays. The wizard suggests the number of LEDs which can connect in series and number of such sets in parallel. Here is an example out put for following values.

Source voltage: 12
diode forward voltage: 2*
diode forward current (mA): 20*
number of LEDs in your array: 100
*See 5mm LED typical technical data

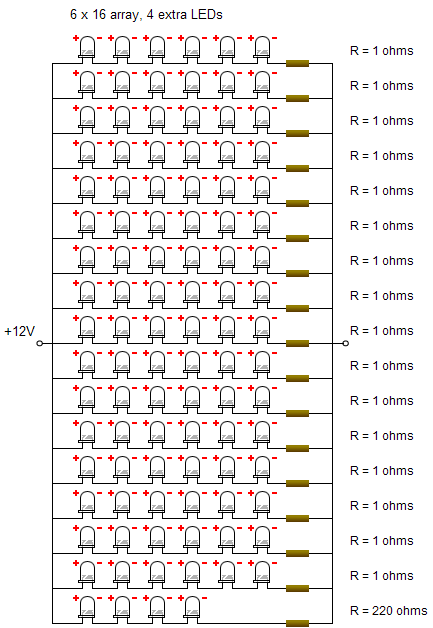

Option 1:

each 1 ohm resistor dissipates 0.4 mW
the 220 ohm resistor dissipates 88 mW
together, all resistors dissipate 94.4 mW
together, the diodes dissipate 4000 mW
total power dissipated by the array is 4094.4 mW
the array draws current of 340 mA from the source

: 1.PNG (22.11 KiB) Viewed 3639 times

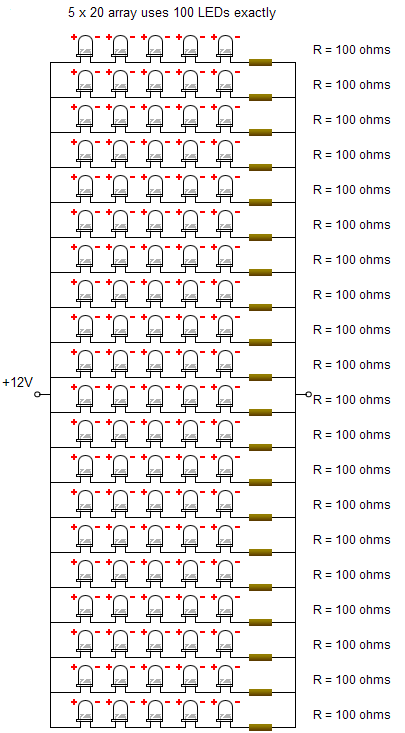

Option 2:

each 100 ohm resistor dissipates 40 mW
together, all resistors dissipate 800 mW
together, the diodes dissipate 4000 mW
total power dissipated by the array is 4800 mW
the array draws current of 400 mA from the source

: 2.PNG (26.98 KiB) Viewed 3639 times

Have a look: http://led.linear1.org/led.wiz
