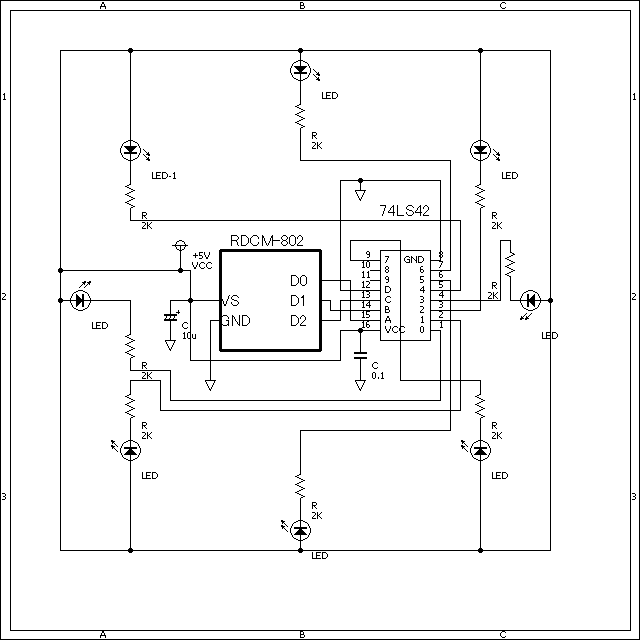

Simple logic circuit to demonstrate the operation.
- compass.gif (11.07 KiB) Viewed 2742 times
| N | NE | E | SE | S | SW | W | NW | |
| D0 | 0 | 0 | 1 | 1 | 0 | 0 | 1 | 1 |
| D1 | 1 | 1 | 1 | 0 | 0 | 0 | 0 | 1 |
| D2 | 1 | 0 | 0 | 0 | 0 | 1 | 1 | 1 |
Main website: http://www.geosensory.com/rdcm-802.htm
Good luck!
How to make a digital compass using RDCM-802
How to make a digital compass using RDCM-802
The RDCM-802 Compass Module is a miniature low-cost orientation-sensing building block suitable for industrial, scientific or hobbyist applications. The module determines the direction in terms of the eight principal compass points, and outputs the result as a 3-bit binary code. The entirely solid-state device contains no moving parts and no coils.
Simple logic circuit to demonstrate the operation.
Datasheet: http://www.geosensory.com/pdf/rdcm-802.pdf
Main website: http://www.geosensory.com/rdcm-802.htm
Good luck!
Simple logic circuit to demonstrate the operation.
Main website: http://www.geosensory.com/rdcm-802.htm
Good luck!
