Musical DoorBell with PIC16F84A

[Rksk]

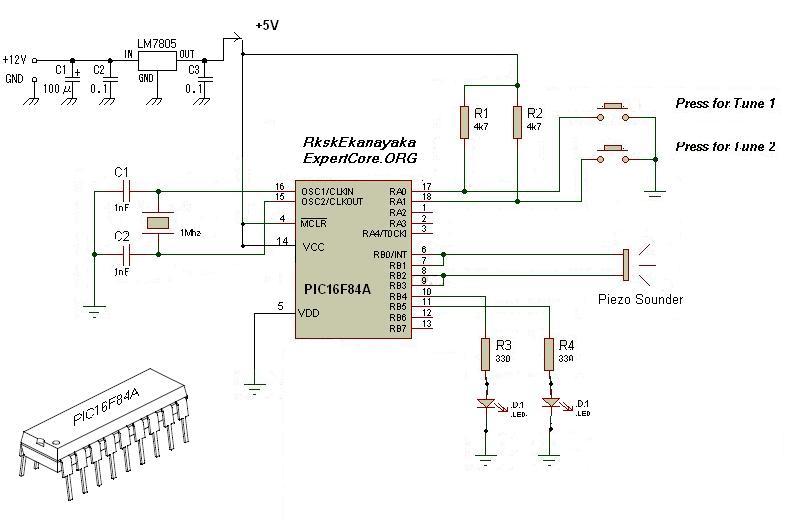

There is a circuit and ASM code for a simple Musical Door Bell with PIC16F84A.


Doorbell.zip

ASM source

(3.06 KiB) Downloaded 1749 times

Please reply your comments!

thankz.

[Magneto]

Dear Friend ,

It is very good , that you have published an article , while you also learning and get some hints from robot.lk.
So in this way , you can share your knowledge with lots of friends like you , who is willing to learn micro controllers and
other electronic stuff. One day you can happy , that you have done some thing for technical development of sri lanka ,
by helping to young developers.

So please continue this good work of knowledge sharing.

Good Luck !!!!!!!1

[Rksk]

Thankz magneto!

still i'm at the start learnining. i will do it with learning.

[Neo]

This is excellent. Keep up the good work !!!

[Shane]

Very good really. Can you please provide PCB layout as well (Seems the images are from Proteus, so you could take the PCB layout quite easily?).

Also I would try this on a smaller micro like PIC 12 series or ATtiny series. How do you think Magneto... is it possible to do without a code change to RkskEkanayaka's code?

[Rksk]

Can you please provide PCB layout as well (Seems the images are from Proteus, so you could take the PCB layout quite easily?).

There is the proteus schematic design file.

DOORBELL_SCHEMATIC.zip

(9.27 KiB) Downloaded 1370 times

[Shane]

Hello, can you put png images of the layout please? (Just get screenshots of exact size).

[Rksk]

Hi shane,

my proteus version doesn't give pcb layout because of it is a patch of a lite version, therefore it hasn't librabries for all the componots. sorry.

if anyone can put pca layout, It will be a good work.

thankz.

[Shane]

Sorry, not possible.

[DeepakPatil23]

Sound of the Piezo speaker is very low and also i tried with speaker in that no sound just little bit bit sound. can u help me for loud sound as for doorbell. and one more this asm code can convert in c program if can plz... send me that.

Thanks,
Regards,

Deepak
