Connect front audio connector

[Nandika]

my friend has a computer with Foxconn 45GM mother board.
we cant connect front audio cable,because we dont know system for connect it.
help me.
i were searched internet.
plese give me a named picture of mother board front audio connector or link.
thankx

[ Post made via Mobile Device ]

[Nipuna]

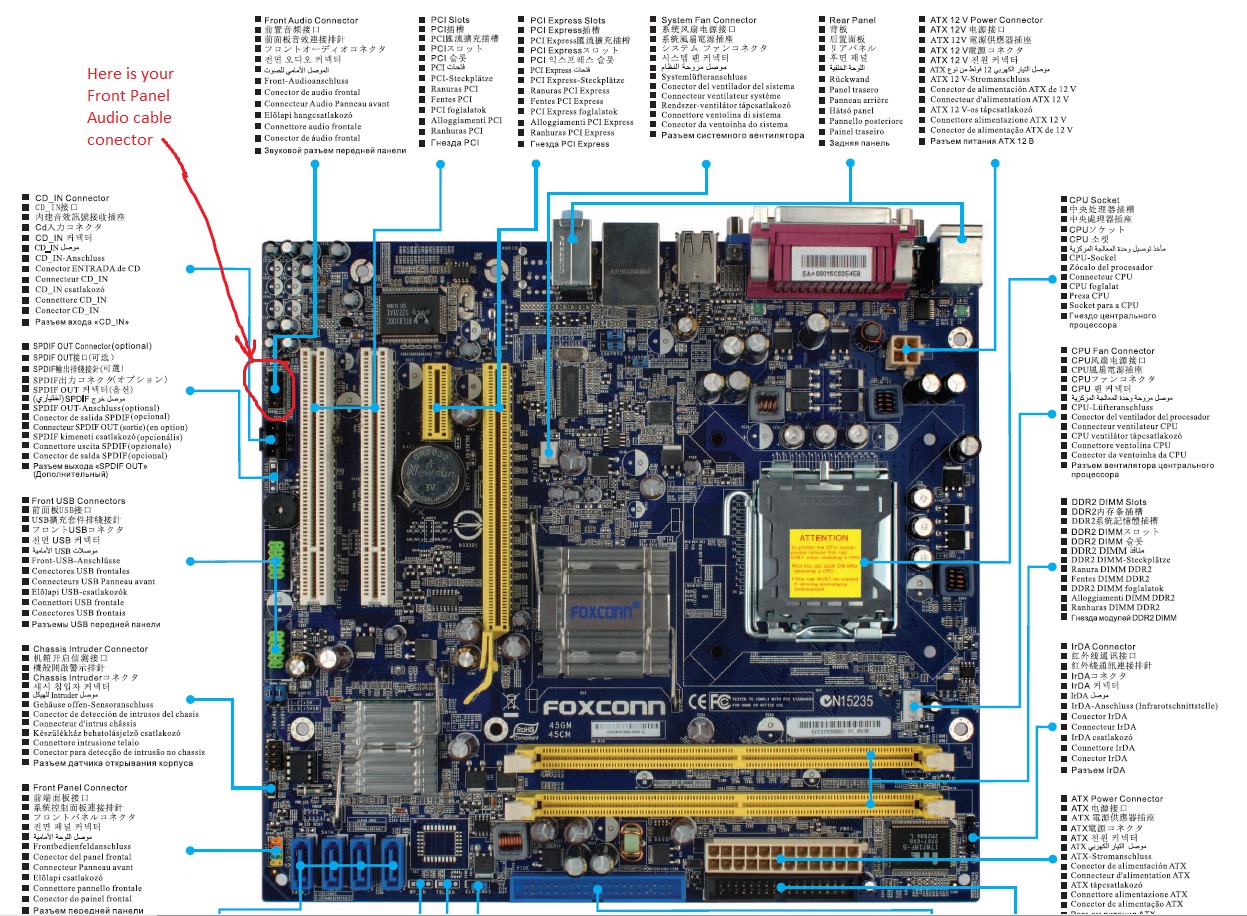

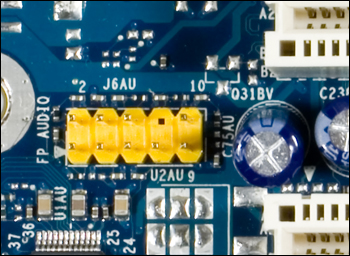

I added a picture there you can see where to connect it.


There are detailed info in the Motherboard Manual

Here is the link to download it
http://www.foxconnsupport.com/download. ... d%20Manual

I didn't upload it here because it's 9MB.

[Nandika]

I added a picture there you can see where to connect it.


There are detailed info in the Motherboard Manual

Here is the link to download it
http://www.foxconnsupport.com/download. ... d%20Manual

I didn't upload it here because it's 9MB.

Friend,
i know location of front audio connector.but,i dont know pin oder of connector.wirs of cable have a name for eatch.as SpkR,SpkL,Gnd,....ect.i can understand this short name.
i want to know pin of connector for eatch wire witch start in front panel of casing.

Thank...

[ Post made via Mobile Device ]

[Nandika]

Dear Nipuna,
your picture of mother board is Foxconn 45CM-S.not 45GM.

45GM has a flopy connector beside front audio connector.
Thank u Nipuna.if u can,give me pin oder.i think,45GM audio connector is same to 45CM-S audio connector.perhaps all audio connector.
Thank you

[ Post made via Mobile Device ]

[Nipuna]

Gnd means Ground

SpkR means Speaker Right

SpkL means Speaker Left

I will tell you how to connect them if you can send me images of those connector and wires

To let you know I also have a Foxconn Motherboard.


Thanks

[Saman]

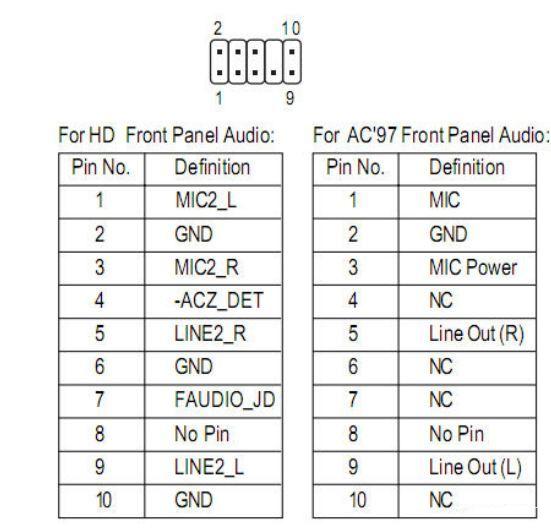

This is the standard pin order of front audio connector.



[Nandika]

Thank u Saman.you could undestand my problem.your image is compleat answare for my problem.
and,
Is this diagram the standerd for any mother board?
Thanx

[ Post made via Mobile Device ]

[Nandika]

Gnd means Ground

SpkR means Speaker Right

SpkL means Speaker Left

I will tell you how to connect them if you can send me images of those connector and wires

To let you know I also have a Foxconn Motherboard.


Thanks

i also have Foxconn 45CM-S mother board.
i think you couldnt understand my problem correctly.because my question is unclear using English.because,
i will send images to you to tomorrow.

Thank
[ Post made via Mobile Device ]

[Nipuna]

It's not a problem

If you could correct your problem then I am happy

[Saman]

Is this diagram the standerd for any mother board?

Yes it is. There are two standards and both are explained in the diagram (HD and AC97).
