PC duino Features

_______________________________________________

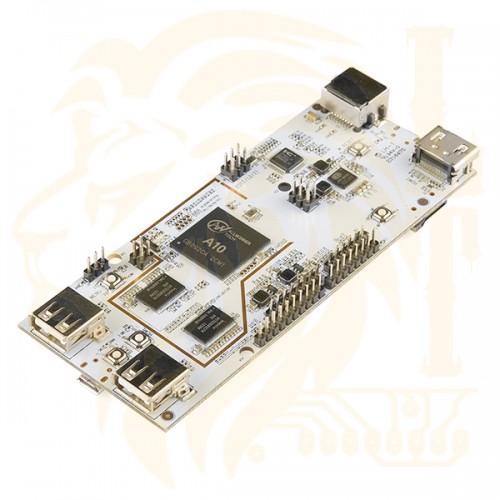

Overview
pcDuino is a high performance, cost effective mini PC platform that runs PC like OS such as Ubuntu and Android ICS. It outputs its screen to HDMI enabled TV or monitor via the built in HDMI interface. It is specially targeted for the fast growing demands from the open source community. The platform could run full blown PC like OS with easy to use tool chain and compatible with the popular Arduino ecosystem such as Arduino Shields (may need a bridge shield) and open source projects etc.

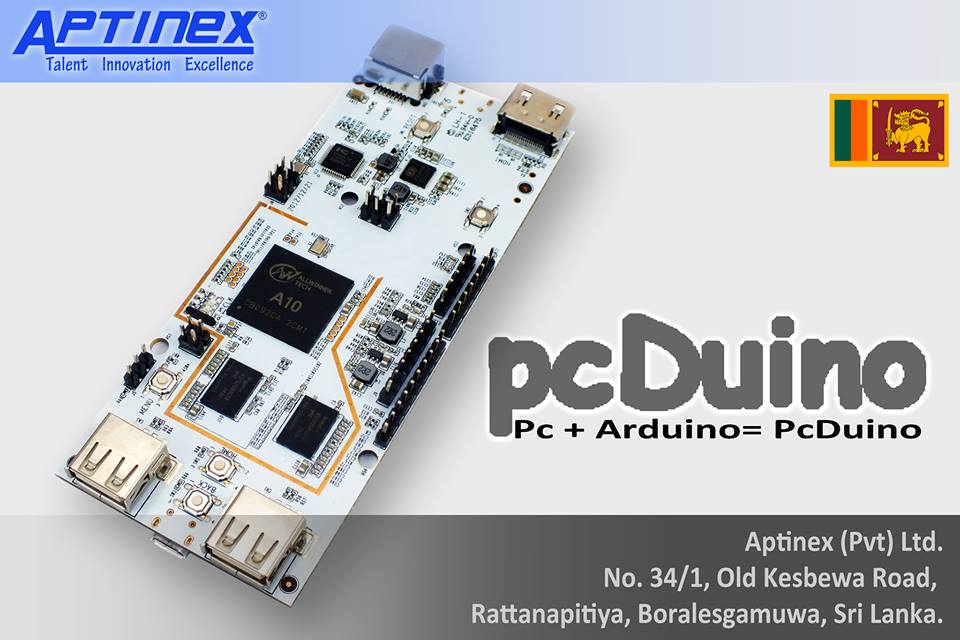

[attachment=2]2.jpg[/attachment]

Hardware Specifications

[background=]01. CPU ---------------------1GHz ARM Cortex A8
02. GPU -------------------- OpenGL ES2.0, OpenVG 1.1 Mali 400 core
03. DRAM -------------------1GB
04. Onboard Storage ------ 2GB Flash, microSD card (TF) slot for up to 32GB
05. Video Output ----------- HDMI
06. OS ----------------------- Linux3.0 + Ubuntu 12.04 , Android ICS 4.0
07. Extension Interface----- 2.54mm Headers
08. Network interface ------ 10/100Mbps RJ45 and USB WiFi extension (not included)
09. Power ------------------- 5V, 700mA

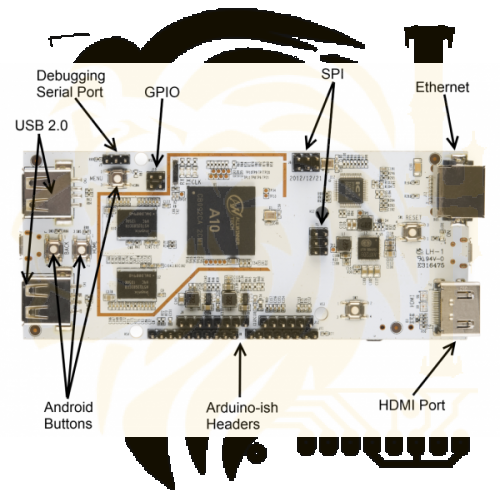

[attachment=1]d.png[/attachment]

Software Specifications

01. OS -
Ubuntu 12.04
Android ICS 4.0

02. Language - English

03. API -
All the arduino shield pins are accessible with the provided API
It consists of API to access the following interfaces:
UART
ADC
PWM
GPIO
I2C
SPI
04. Programming language support
C, C++ with GNU tool chain
Java with standard Android SDK
Python
